Best Location for a Solar Water Pump: A Quick Guide

Choosing the right spot for your solar water pump can make the difference between years of reliable service and constant troubleshooting. Whether you're setting up irrigation for a farm or a water supply system for your home, here's what to consider before you install.

1. Maximum Sunlight Exposure

Your solar panels need direct, unobstructed sunlight for most of the day — ideally 6 to 8 hours. Avoid spots shaded by trees, buildings, or hills, especially during peak sun hours (10 AM to 4 PM). South-facing installations typically get the most consistent exposure across the day in India.

2. Submerge the Pump Directly in the Source

Zeddflow's BLDC pump has no suction capability — it only moves water when the pump itself is fully submerged, so it can't be mounted outside the well or tank and rely on a suction line to draw water up. Lower the pump directly into the well, borewell, pond, or tank you're drawing from, and let the delivery tube carry water out and up to your storage point. If the solar panels can't sit right next to the water source due to shading, that's fine — run the cabling from the panels to the submerged pump instead of moving the panels; most setups handle this without issue.

3. Full Submersion, Stable Footing

Zeddflow pumps are submersible, so the pump itself needs to sit fully underwater in the source — not on dry, elevated ground. What matters instead is a stable, debris-free bed at the bottom of the well, borewell, or tank so the pump doesn't tip over or draw in silt and sediment. Keep the surrounding wiring and any electrical components (like the buck converter mentioned below) elevated and dry, even though the pump itself stays submerged.

4. Minimal Vertical Lift

The vertical distance water needs to travel — from source to storage tank or field — directly affects how hard your pump has to work, and water flow decreases as that lift increases. For reference, Zeddflow's pump delivers its rated flow up to about 3 meters of vertical lift at 12V, and up to roughly 3.5–4 meters at 14V. These figures are based on testing with 9mm ID soft tubing — using a wider pipe diameter will lower lift capacity, so stick with 9mm ID tubing for the best performance. Where possible, choose a location that keeps the elevation change between water source and discharge point within this range to get the most consistent flow.

5. Easy Access for Maintenance

Pick a spot you can reach easily for cleaning panels, checking connections, and general upkeep. Solar panels lose efficiency when dusty, so a location that's simple to walk up to and clean regularly will keep your system performing at its best.

6. Away from Debris and Livestock

If you're setting up on a farm, keep the pump and panels away from areas where animals graze or where falling branches and debris are common. A small fence or barrier around the setup can prevent accidental damage.

7. Match Your Voltage Setup Correctly

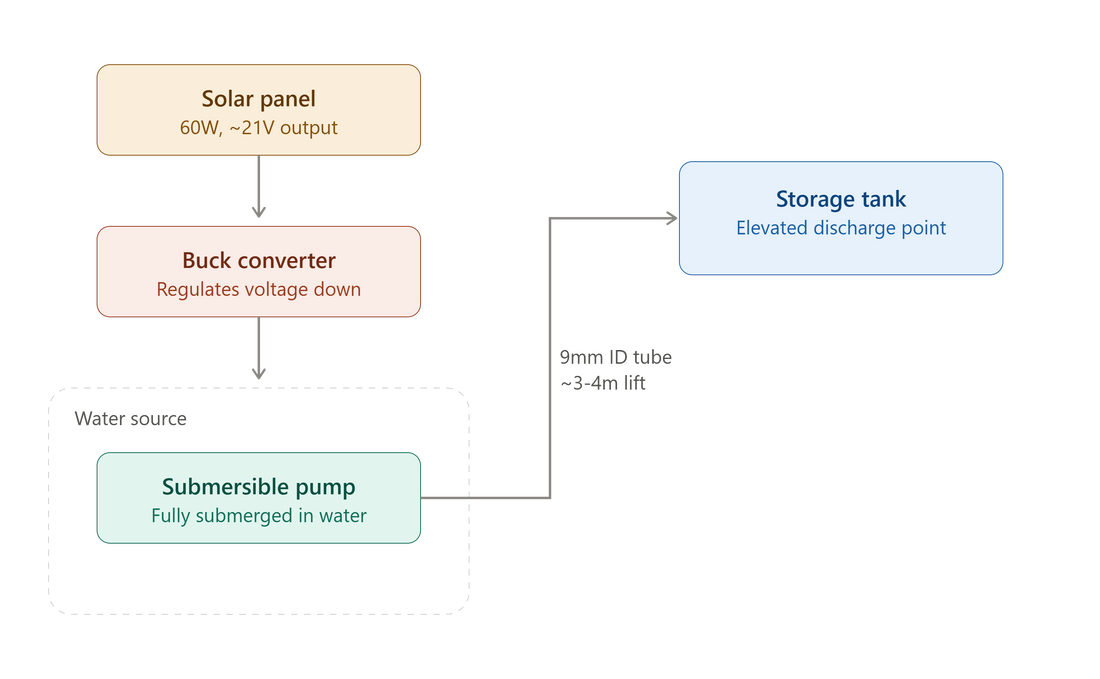

Location isn't the only thing that determines performance — your wiring setup matters too. For example, Zeddflow's solar water pump can run directly off a 60W solar panel, but since panel output typically runs around 21V, it's important to add an adjustable DC-DC buck converter (step-down regulator) between the panel and the pump. This regulates the voltage down to what the pump actually needs, protecting the motor and keeping performance consistent — regardless of how sunny or placement-perfect your chosen spot is.
